• IEEE 1101.7-1995

IEEE 1101.7-1995

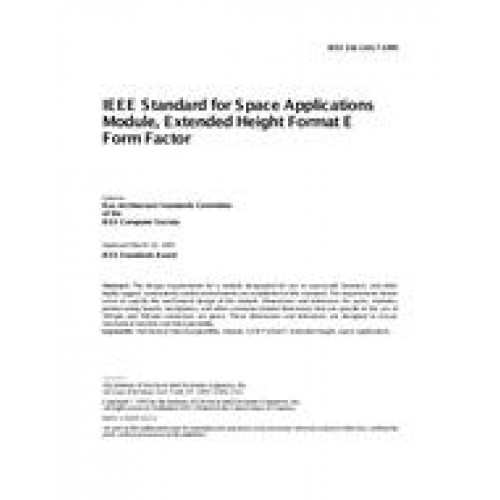

  • IEEE Standard for Space Applications Module, Extended Height Format E Form Factor
  • standard by IEEE, 07/11/1995
  • Category: IEEE

$144.00 $72.00

New IEEE Standard - Inactive-Withdrawn.Withdrawn Standard. Withdrawn Date: Jan 15, 2001. The design requirements for a module designated for use in spacecraft, boosters, and other highly rugged, conductively cooled environments are established in this standard. The requirements herein serve to specify the mechanical design of the module. Dimensions and tolerances for racks, modules, printed wiring boards, backplanes, and other connector-related dimensions that are specific to the use of 300-pin and 396-pin connectors are given. These dimensions and tolerances are designed to ensure mechanical function and interoperability.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
