• SMPTE 227M-1996

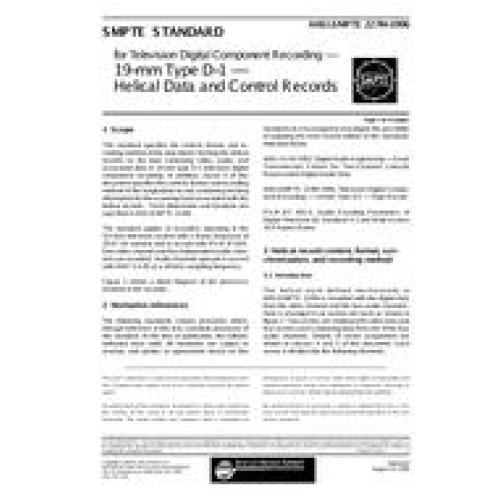

SMPTE 227M-1996

  • Television Digital Component Recording - 19-mm Type D-1 - Helical Data and Control Records
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$100.00 $50.00

This standard specifies the content, format, and recording method of the data blocks forming the helical records on the tape containing video, audio, and associated data in 19-mm type D-1 television digital component recording. In addition, clause 6 of this document specifies the content, format, and recording method of the longitudinal record containing tracking information for the scanning head associated with the helical records. Track dimensions and locations are specified in SMPTE 224M.The standard applies to recorders operating in the 525-line television system with a frame frequency of 29.97 Hz nominal and in accord with ITU-R BT.601. One video channel and four independent audio channels are recorded. Audio channels operate in accord with ANSI S4.40 at a 48-kHz sampling frequency. Figure 1 shows a block diagram of the processes involved in the recorder.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
