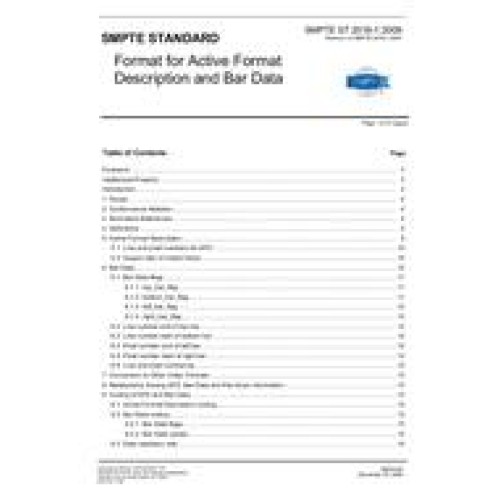

• SMPTE 2016-1-2009

SMPTE 2016-1-2009

  • Television - Format for Active Format Description and Bar Data
  • standard by Society of Motion Picture and Television Engineers,
  • Category: SMPTE

$75.00 $38.00

This Standard defines Active Format Description (AFD) and Bar Data for origination and conveyance throughthe production and distribution processes for standard definition or high definition television signals. AFD andBar Data are intended to be ultimately broadcast with the video signals that they describe, thereforereferences to emission and DTV receivers are included to ensure compatibility between the origination of theAFD and Bar Data and its ultimate use.

Associated standards define how this information is placed into ancillary data packets and is KLV coded asSMPTE metadata. Annex C shows the relationship among the standards.
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
