PIP ELSSG01D-D

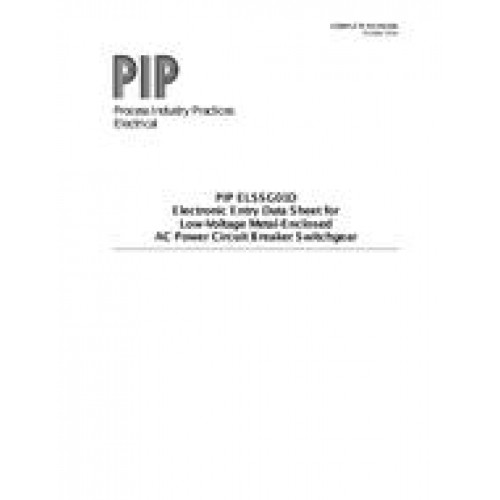

- Electronic Entry Data Sheet for Design and Fabrication of Low Voltage Metal Enclosed AC Power Circuit Breaker Switchgear [Comple
- Data Sheet by Process Industry Practices, 10/01/2010
- Category: PIP
$50.00
$25.00
This data sheet provides the requirements described in PIP ELSSG01 - Design and Fabrication of Low-Voltage Metal-Enclosed AC Power Circuit Breaker Switchgear.
The categories covered in this data sheet are site conditions; system parameters; enclosure; assembly UL label; incoming power connections; control cable entry; feeder cable connections; compartments; isolation barriers between rear compartments; isolation barriers between breakers compartments; ventilation openings; breaker control power; main circuit breaker; tie breaker; feeder circuit breaker; main bus and bus rating; voltage transformer; control power transformers; current transformer data; switches; metering; metering communication; space heaters; transfer scheme; wiring and terminations; finish; system grounding; high-resistance grounding system; feeder breaker ground detection system; portable test kit for solid-state trip devices; shop inspection and tests; documentation; and other requirements.
The categories covered in this data sheet are site conditions; system parameters; enclosure; assembly UL label; incoming power connections; control cable entry; feeder cable connections; compartments; isolation barriers between rear compartments; isolation barriers between breakers compartments; ventilation openings; breaker control power; main circuit breaker; tie breaker; feeder circuit breaker; main bus and bus rating; voltage transformer; control power transformers; current transformer data; switches; metering; metering communication; space heaters; transfer scheme; wiring and terminations; finish; system grounding; high-resistance grounding system; feeder breaker ground detection system; portable test kit for solid-state trip devices; shop inspection and tests; documentation; and other requirements.
