  • PIP ELSPF01

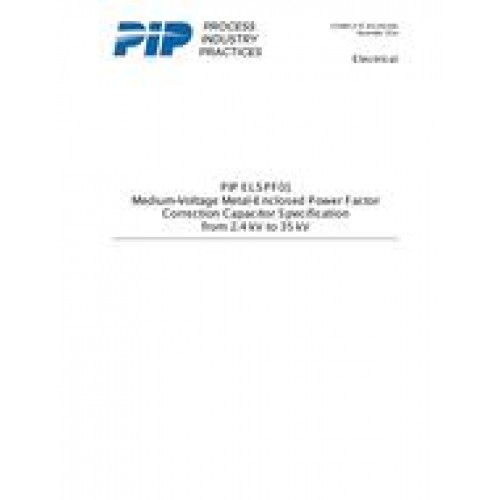

PIP ELSPF01

  • Medium-Voltage Metal-Enclosed Power Factor Correction Capacitor Specification from 2.4 kV to 35 kV
  • standard by Process Industry Practices, 09/01/2016
  • Category: PIP

$150.00 $75.00

This Practice provides minimum requirements for design, fabrication, inspection, testing, shipment, and documentation, for metal-enclosed power factor correction capacitors, from 2.4 kV to 35 kV, containing enclosure, lightning/surge arrestor, transient inrush reactor, vacuum circuit breaker, capacitor, capacitor protection, insulated buses, and control for indoor/outdoor installation in unclassified areas. This Practice covers fixed, manual, and automatic switched capacitor banks.

Details

Published:
09/01/2016
Number of Pages:
15
File Size:
2 files , 530 KB
PDF

All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.
