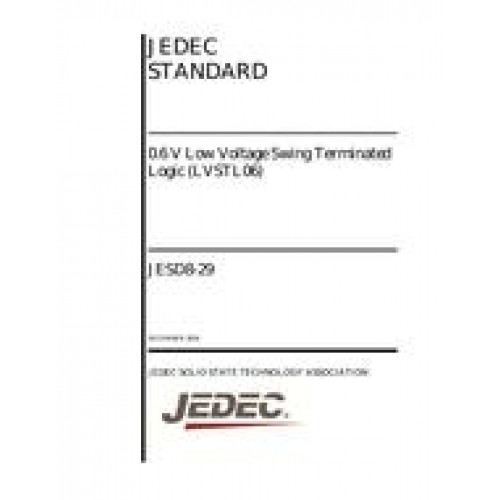

JEDEC JESD8-29
- 0.6 V Low Voltage Swing Terminated Logic (LVSTL06)
- standard by JEDEC Solid State Technology Association, 12/01/2016
- Category: JEDEC
$54.00
$27.00
This standard defines power supply voltage range, dc interface, switching parameter andovershoot/undershoot for high speed low voltage swing terminated NMOS driver family digitalcircuits with 0.6V supply. The specifications in this standard represent a minimum set ofinterface specifications for low voltage terminated circuits.
The purpose of this standard is to provide a standard of specification for uniformity, multiplicityof sources, elimination of confusion, and ease of device specification and design by users.Class 1 describes low VOH (Nominal VOH = VDDQ*0.5) level terminated electricalcharacteristics. Class 2 describes high VOH (Nominal VOH = VDDQ*0.6) level terminatedelectrical characteristics.
The purpose of this standard is to provide a standard of specification for uniformity, multiplicityof sources, elimination of confusion, and ease of device specification and design by users.Class 1 describes low VOH (Nominal VOH = VDDQ*0.5) level terminated electricalcharacteristics. Class 2 describes high VOH (Nominal VOH = VDDQ*0.6) level terminatedelectrical characteristics.
