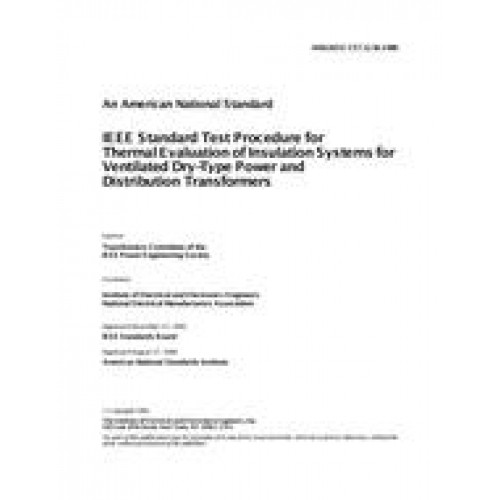

IEEE C57.12.56-1986
- IEEE Standard Test Procedure for Thermal Evaluation of Insulation Systems for Ventilated Dry-Type Power and Distribution Transfo
- standard by IEEE, 10/03/1986
- Category: IEEE
$105.00
$53.00
New IEEE Standard - Superseded.This IEEE Standards product is part of the C57 family on Power Distribution and Regulating Transformers. A test procedure for determining the temperature classification of ventilated dry-type power and distribution transformer insulation systems by test rather than by chemical composition is established. The intent is to provide a uniform method for providing data for selection of the temperature classification of the insulation system, for providing data that may be used as a basis for a loading guide, and for comparative evaluation of different insulation systems. Voltage-withstand endpoint criteria are related to the impulse voltage distribution within the coil or to the initial voltage-withstand of the coil. A relationship between impulse withstand of the insulation and short-term 60-Hz-withstand is identified so that 50/60--Hz testing of model coils is possible.
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
