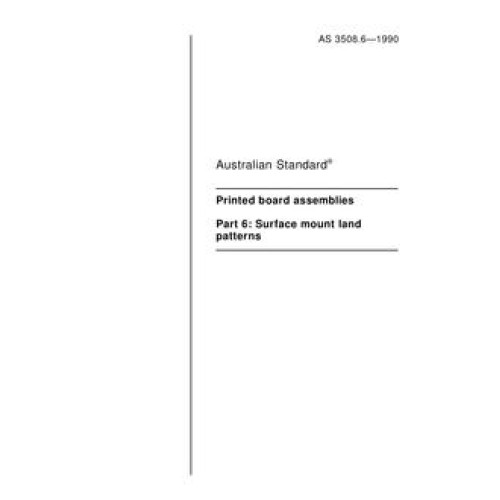

AS 3508.6-1990
- Printed board assemblies - Surface mount land patterns
- standard by Standards Australia, 06/18/1990
- Category: AS
$123.50
$62.00
Defines land patterns in a way that is transparent to the attachment process adopted for assembly of the assembly. The information given is suitable for establishing a standard configuration for both manual designs and computer aided systems. The land pattern and component dimensions are optimized to ensure proper joint and inspection criteria irrespective of the method of mounting or the method of soldering adopted.
PDF
All of our standards document are available in PDF (Portable Document Format), an electronic, downloadable format.You will be able to download the file in your account downloads.
Multi-User Access
After purchasing, you have the ability to assign each license to a specific user.
Printable
At any time, you are permitted to make printed copies for your and your members' reference use.
